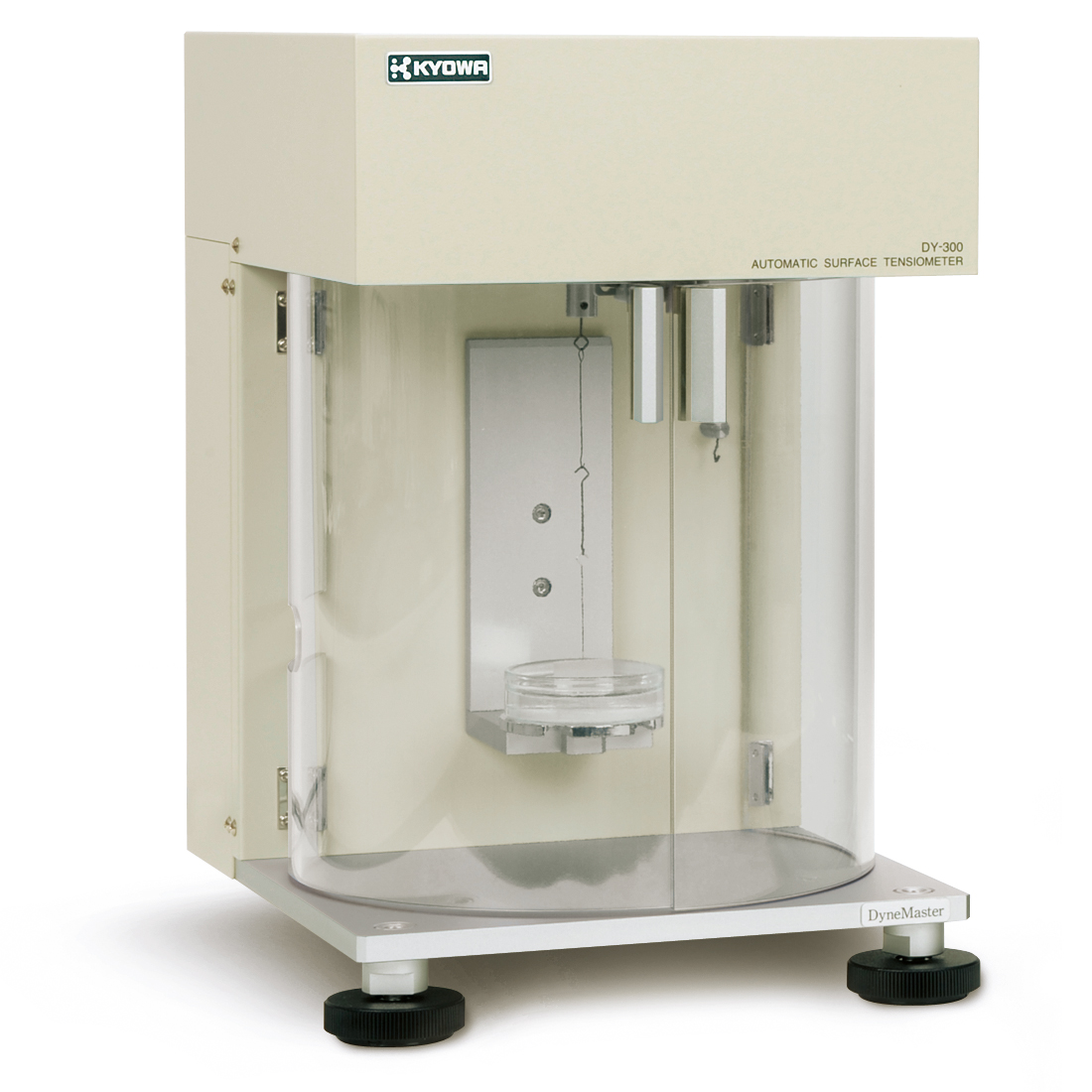

DY-300



Standard tensiometer for use in quality control

DY300
DY300
DY300
DY300
DY300
DY300
  • "One-click" fully automated operation

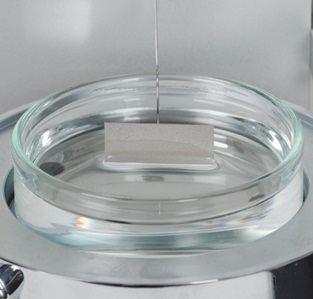

  • Pre-wetting function to eliminate measurement errors caused by unsuccessful wetting of Wilhelmy plate or du Noüy ring
  • Easy parameter setting to adapt various measuring standards
  • Video user manual for user-friendly operation
  • Adjustable level of the body
  • Calibration by external weights for periodic inspection of measurement accuracy

Hardware

  • Sedimentation behavior measurement kit
  • Liquid density measurement kit
  • Jacket-type sample stage for temperature measurements from +10 to 70 ℃
  • Heater-type sample stage for temperature measurements from ambient to +150 ℃
  • Surface tension: Paints, inks, and additives for coating processes
  • Interfacial tension: Transformer oil, emulsions, surfactant solutions
  • Lamella length: Paint leveling, foaming stability of coatings, and fire extinguishing agents
  • Sedimentation behavior: Flocculants used in wastewater treatment, stability of dispersions, such as paints and pigmented inks
  DY-300
Measuring methods




surface tension (Wilhelmy plate and du Noüy ring method)
interfacial tension (Wilhelmy plate and du Noüy ring method)
lamella length (with the use of the du Noüy ring)
liquid density (Gay-Lussac Pycnometer method)1)
sedimentation behavior 1)
Measuring range surface/interfacial tension: 1 to 1.000 mN/m
liquid density: 0.001 to 3.3 g/cm3
Resolution surface/interfacial tension: 0.01 mN/m
liquid density: 0.0001 g/cm3
Accuracy2) surface/interfacial tension: 0.2 mN/m
Calibration method by external calibration weights
Sample stage operation:
Speed
Stroke
software-controlled
0.004 to 5.0 mm/s
48 mm
External dimensions
(WxDxH)
255 x 309 x 369 mm

Approximately weight 12.5 kg
Electric power:
Voltage
Frequency
Power consumption

AC 100-240 V
50/60 Hz
35 W 75 VA
Operating environment

temperature: +10 to +35 ℃, humidity: 30 to 80 %RH (non-condensing)
positioned away from sources of electrical noise and vibration

1) Optional measuring probe is required
2) Accuracy is the repeatability in terms of standard deviation based on the manufacturer’s calibration weights

Related Products

サンプル

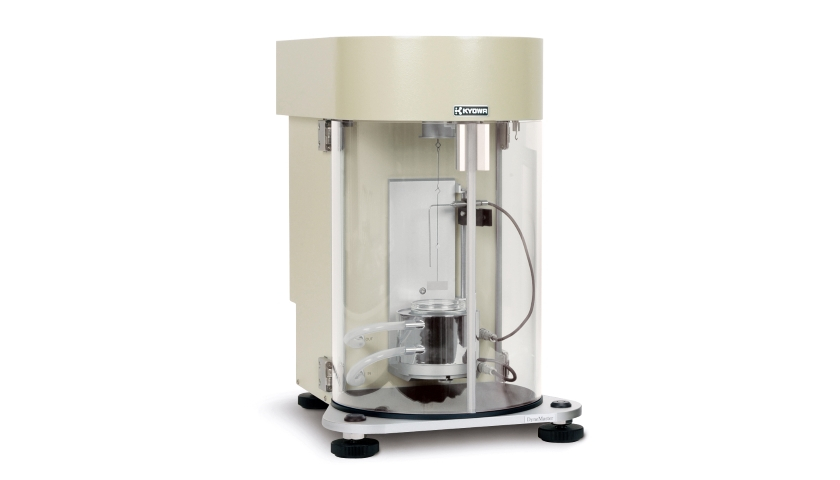

DY-700/500

- Versatile Tensiometers

サンプル

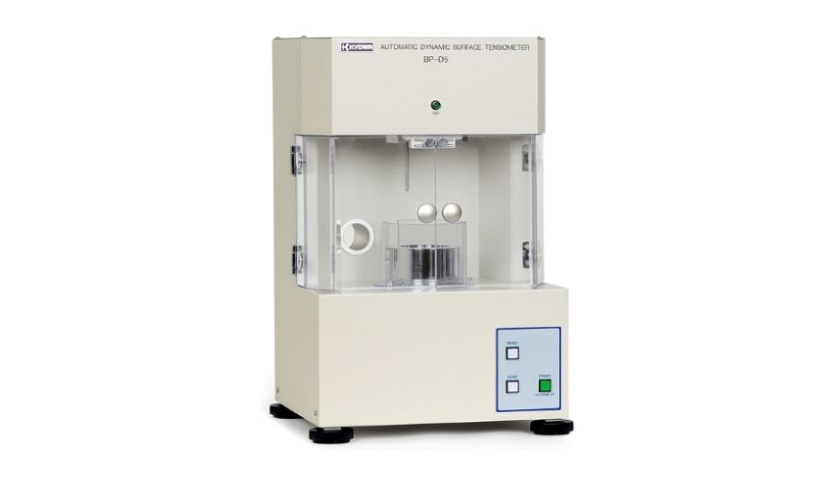

BP-D5
